Jiangyin Gearbox TY series conaxial hard tooth surface gearbox reducer

FOB Reference Price:Get Latest Price
$300.00 - $8,700.00 / Piece | 1 Piece/Pieces Prices depend on Specific model (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
JC/Duoling
Model Number:
TY80/90/100/112/132/160/180/200/225/250/280
Gearing Arrangement:
Spur
Output Torque:
160-32000N.m
Rated Power:
0.17-470KW
Input Speed:
750-1500rpm
Output Speed:
75-425rpm
Product name:
Jiangyin Gearbox TY series conaxial hard tooth surface gearbox reducer
Material:
high-quality ally steel
Center distance:
50-280mm
Ratio:
3.55-100
Norminal output torque:
160-32000N.m
Application fields:
metallurgy, mining, energy, transport, building materials, etc.
Mounting types of motors:
B5 / B35
Color:
customized
Warranty:
12 Months
Certification:
ISO9001:2008
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month All ports
Packaging & Delivery
Packaging Details
wooden cases
Port
Shanghai
Lead Time :
42 working days
Product Description
Product Name
TY series coaxial gearbox
Material
high-quality ally steel
Color
costomized
Certification
ISO9001:2008
Precision Grade
Grade 6
Brade
JC/Duoling
Warranty
12 months
Application Fields
metallurgy, mining, energy, transport, building materials, chemical, textile, light industry etc.

Product Features

TY series gearboxes are involute gear transmission device with coaxial of input and output shaft. The major drive parts adopt high-quality ally steel. The gear reaches the precision grade 6(GB10095-88) after it goes through carburizing, quenching and gear grinding. It features small volume, high carrying capacity, long service life, low noise and high efficiency.


They are widely applied to metallurgy, mining, energy, transport, building materials, chemical, textile, light industry etc. The motors are Y series of three-phase asynchronous motor, the mounting types are of motors are B5 or B35. The gearboxes are horizontal installed with sloping angel no more than 20°.

Technical Parameter
Center Distance (mm)
50-280
Ratio (i)
3.55-100
Nominal Output Torque (N.m)
160-32000

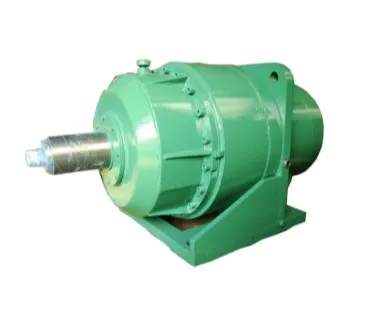

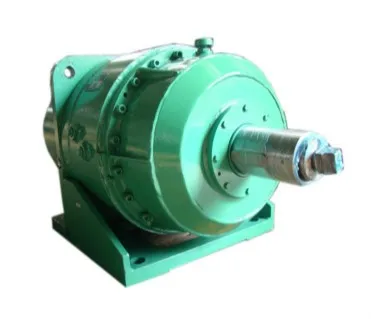

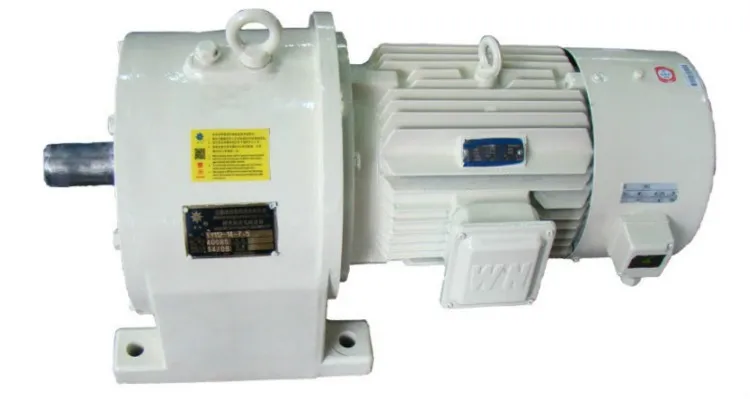

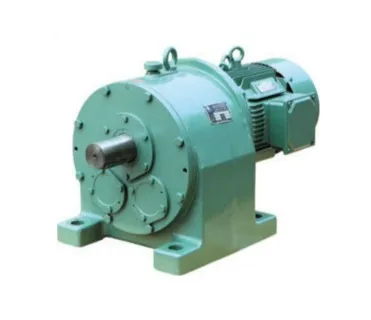

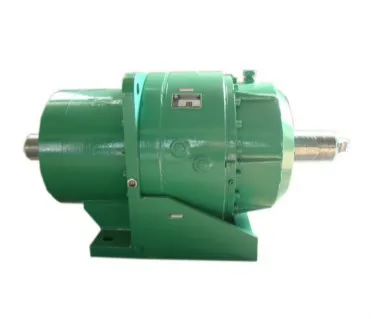

Products Show

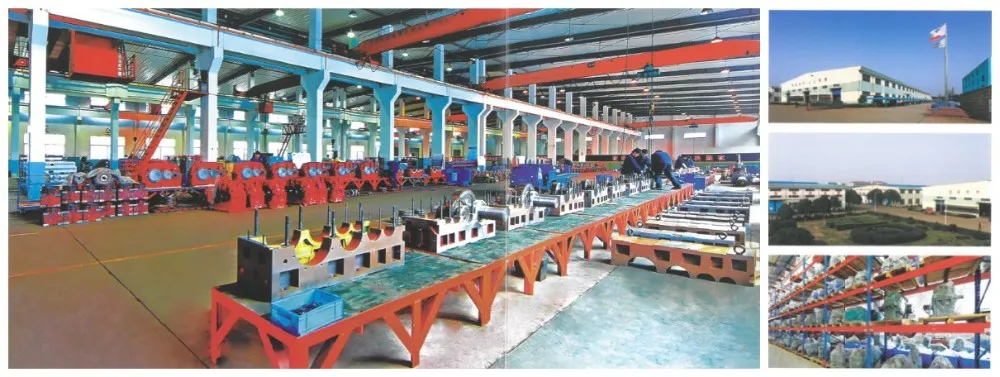

Our Company

  Established in 1979, Jiangyin Gearbox Manufacturing Co., Ltd. is located in National High-tech Development Zone of Jiangyin, Jiangsu, China. With more than 38 years' experience in research and development of gear transmission products, the factory covers an area of 87,000 square meters. ISO9001 certified in 1999, our company has high qualified R&D engineer team and manufacturing talents as well as first-class processing and testing equipments.

  Main products of our company include cylindrical gearbox series (ZDY, ZLY, ZSY), conical cylinder gear reducer series (DBY, DCY), standard modularized and integrated gear reducer series (JCH, JCB), JCP series planetary gear reducers, JC.K, F, R, S series gear motors, TY series coaxial hard tooth surface gear reducers and customized gearboxes etc., which are widely applied in such industries as rubber and plastics, ports, metallurgy, mining, building materials, petrochemical and other industries.

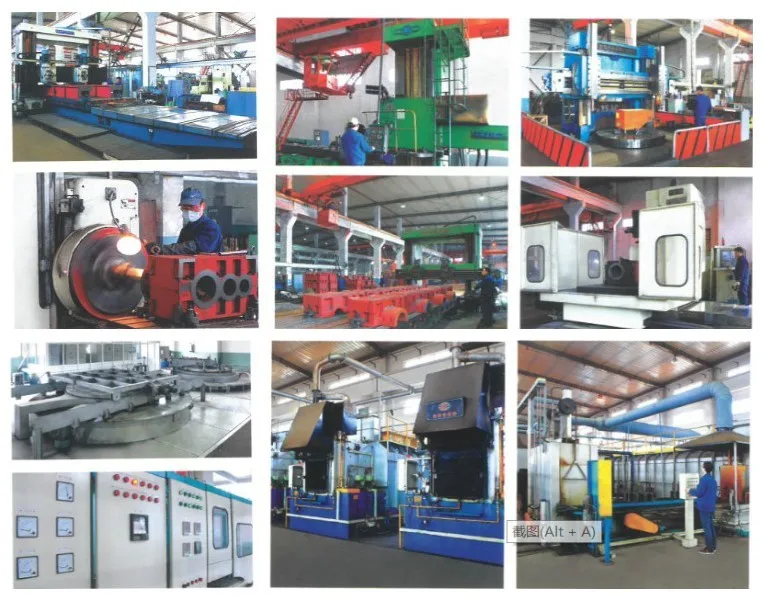

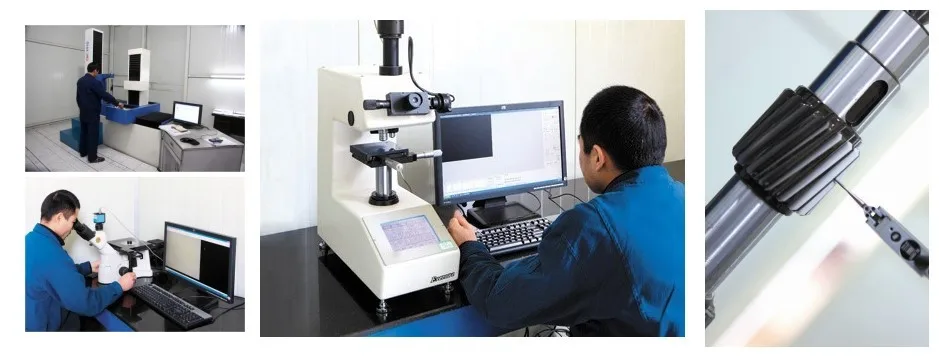

  Our company constantly introduces domestic and foreign advanced production equipment and processing technology. With all types of large and medium-sized CNC hobbing machine, CNC profile grinding machine, CNC machining center etc., it’s furnished with expert system box-type multi-purpose furnace and pit-type carburizing furnace, gear testing center and other advanced processing and testing equipment etc.

  Having mechanical research institution with professional and technical elites, we are committed to provide most cost-effective gear transmission solutions for our customers at home and abroad, more importantly, our global marketing and service network has been established to ensure perfect after-sales service.

Our Certifications

Best stainless

Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,

Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer with over 39 years’ experience.

Q: How long is your delivery time?

A: Generally it is within 10 days if the goods are in stock, for goods produced as per order, it is within 42 days after confirmation of order.

Q: What information should I give you to confirm the product?

A: Model/Size, Transmission Ratio, Speed, Shaft directions & Order quantity etc.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
